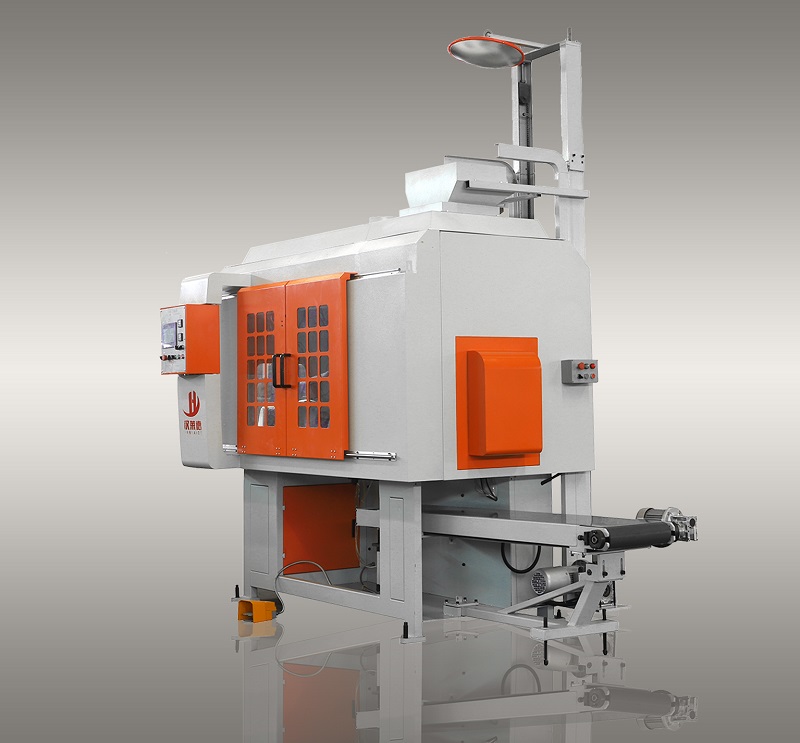

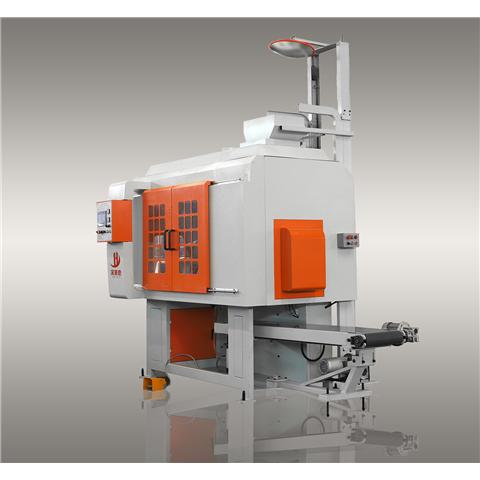

Automatic sand core shooting machine
SKU:0004
Features
1. Machine Application and
Scope of Application
HZ 360-HS core shooting
machine is a kind of automatic core shooting machine with the functions of
vertical parting, full automatic, down-turning die, conveyor belt to convey
sand core and automatic mixed sand lifting. It is suitable for small and
medium-sized work pieces in valve, faucet, hardware, hydraulic and pneumatic
industries. It also applied to the hot core sand and coated sand of furan resin
series hot box sand and urea-formaldehyde resin series. It is especially
suitable for copper and aluminum casting industry, which can meet the
core-making requirements of the core-shooting process with three-component
resin, complex core shape and low structural strength.
Machine construction features:
1. human-machine interface and imported high quality electronic control
and pneumatic components/hydraulic device to ensure accurate and reliable
control and easy operation.
2. there are three modes: manual, single action and automatic.
3. the shooting port is 70 degrees to the sand, away from the high
temperature area, so that the perforation is easy to manually clean.
4. The machine is equipped with integral moving mechanism of the base,
which can make the base move along the X and Y axes, so that the perforation of
the opposite mold into the sand hole more convenient and accurate.
5. The movable die is equipped with the core pulling rack to meet the
special requirements of the mold. If you do not use core pulling, close the
core pulling switch.
6. The angle of the quicksand in the sand storage bucket reaches 70
degrees and is equipped with a vibrating motor. It is suitable for the use of
collapsible core sand with poor fluidity in the copper casting and aluminum
industry.
7. With mold adjustment space, it is convenient to assemble different
molds and reduce the requirements for the die size.
|
Technical
Parameters
|
|
Code
|
Item
|
Specification
|
|
1
|
Max.
Weight of Sand Core
|
8kg
|
|
2
|
Max.
Size of Core Box ( L x W x H)
|
（450*330*220）mm
|
|
3
|
Heating
Plate ( L x W)
|
（400*300）mm
|
|
4
|
Heating
Power
|
9.6kw
|
|
5
|
Downward
Stroke of Ejection Head
|
≤30mm
|
|
6
|
Stroke
of Mold Opening
|
≤300mm
|
|
7
|
Max.
Stroke of Core Remove
|
150mm
|
|
8
|
Conveyor
( L x W x H)
|
（2200*450*100）mm
|
|
9
|
Total
Power
|
13.2kw
|
|
10
|
Rising
Angle of Conveyor
|
2°~4°
|
|
11
|
Speed
of Transportation
|
72mm/s
|
|
12
|
Machine
Size ( L x W x H)
|
（3500*1480*3400）mm
|
|
13
|
Speed
of Lift (Single Time)
|
35s
|
|
14
|
Weight
of Lift ( Single Time)
|
5~10kg
|
|
15
|
Total
Weight
|
2000kg
|
|
16
|
Hydraulic
pressure
|
50Kg/cm2
|
